Product Angle

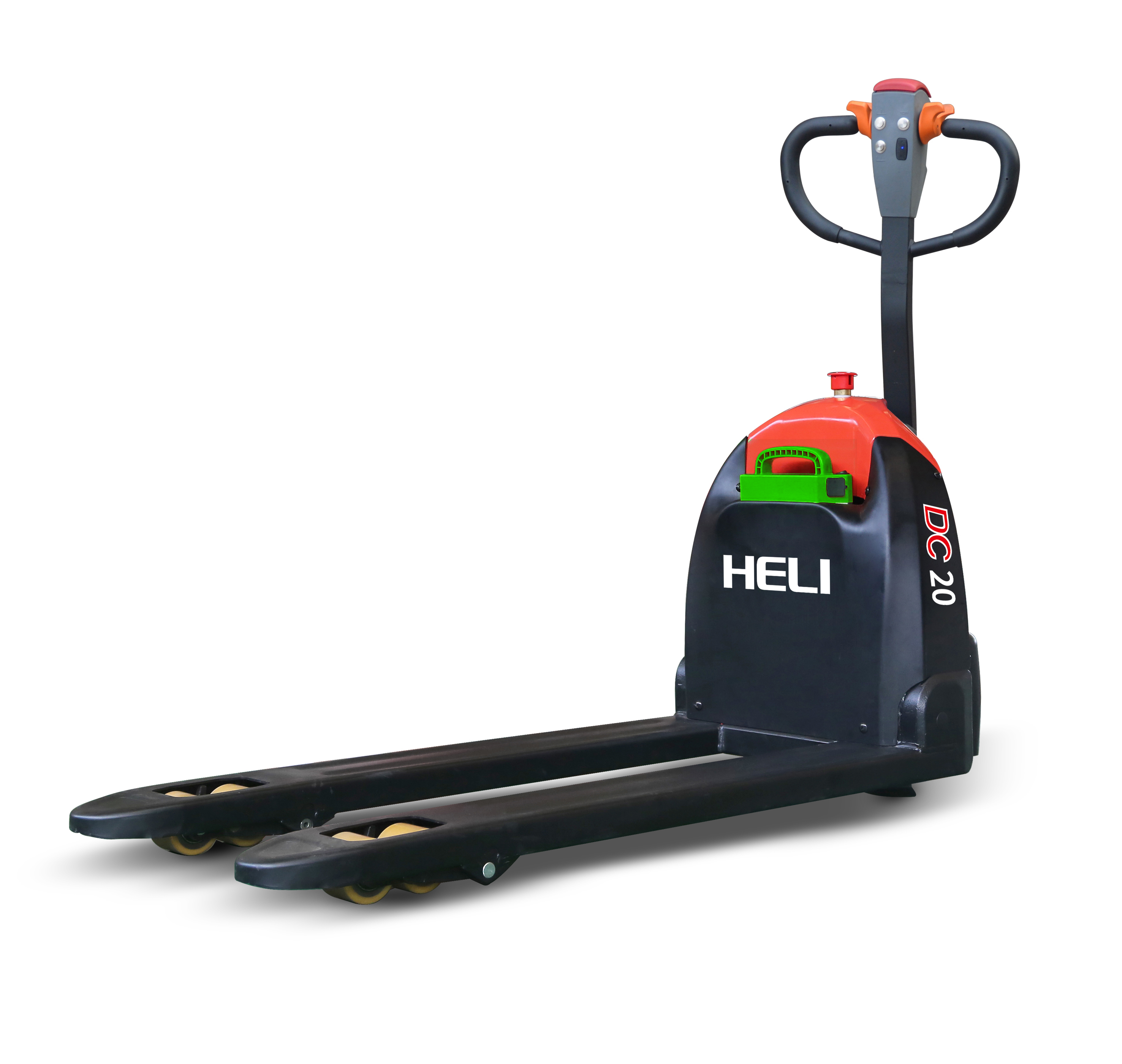

Walkie Pallet Truck
Product Feature
    1. The vehicle is simple and dexterous with a steering radius of 1355 mm. It is suitable for ultra-narrow aisle operation.

    2.The truck is equipped with 48V/20Ah (2 tons) portable lithium battery pack which is easy and convenient for battery

    changing. Lithium battery, drive wheel protection, steering structure design and circuit optimization ensure truck safety.

    3. Integrated handle design integrating key switch and electric meter is simple and comfortable for operation.
    4. Emergency reverse device ensures safety.
The main parameter
Model CBD20J-Li2
Loading capacity lbs 4400
Load center in 24
Operating type Walkie
Wheels type PU
Max.lifting height in 7.87
Overall fork width in 21.7/27.0
Fork length in 45
Overall length in 60.7
Overall width in 21.7/27
Overall height(With handle) in 44
Min.Turning radius in 53.3
Min.Aisle width for pallets 1000×1200 in 69.3
Travel speed,laden/unladed mph 2.6/2.8
Lift speed,laden/unladed in/s -
Driving motor hp DC 1.0
Battery voltage/capacity V/Ah 48/20
Controller CURTIS
Battery weight lbs 16.5
Service weight with battery lbs 320
