Product Angle

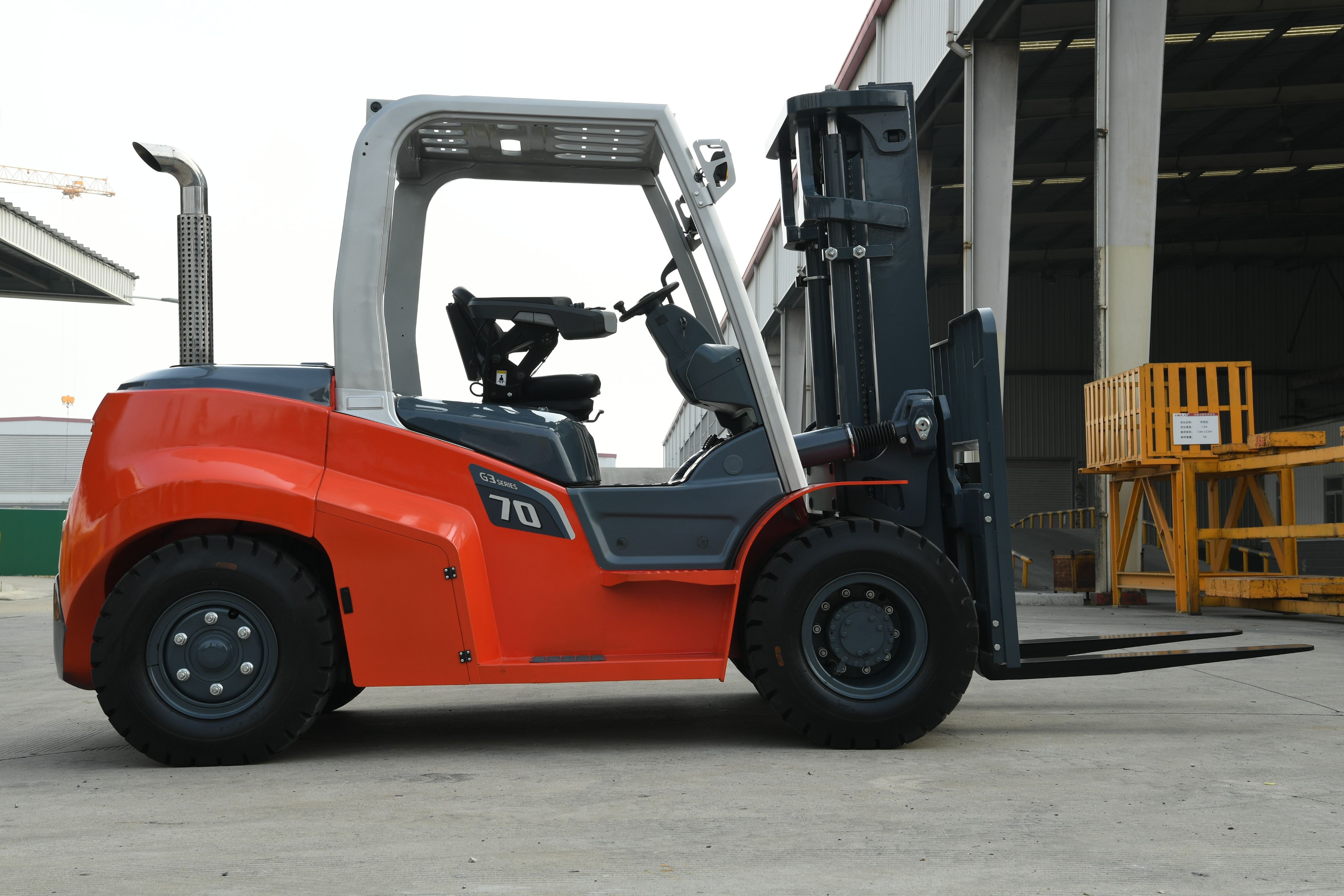

G Series 5.5-10t
Diesel Forklift-Pneumatic (11000-22000 lbs. Capacity)
Product Feature

    HELI perform a new design for it, and make this type trucks not only can provide exceptional

    comfort and safety, but also more durable.

    ● More comfortable for driver

    (1)The suspended engine and transmission can effectively reduce the vibration which transmitted

    to the operating system, andcan reduce the driving fatigue significantly. The suspended type cab,

    compared with the H series, reduce30% vehicle vibration.

    (2) Thecomfortable operation

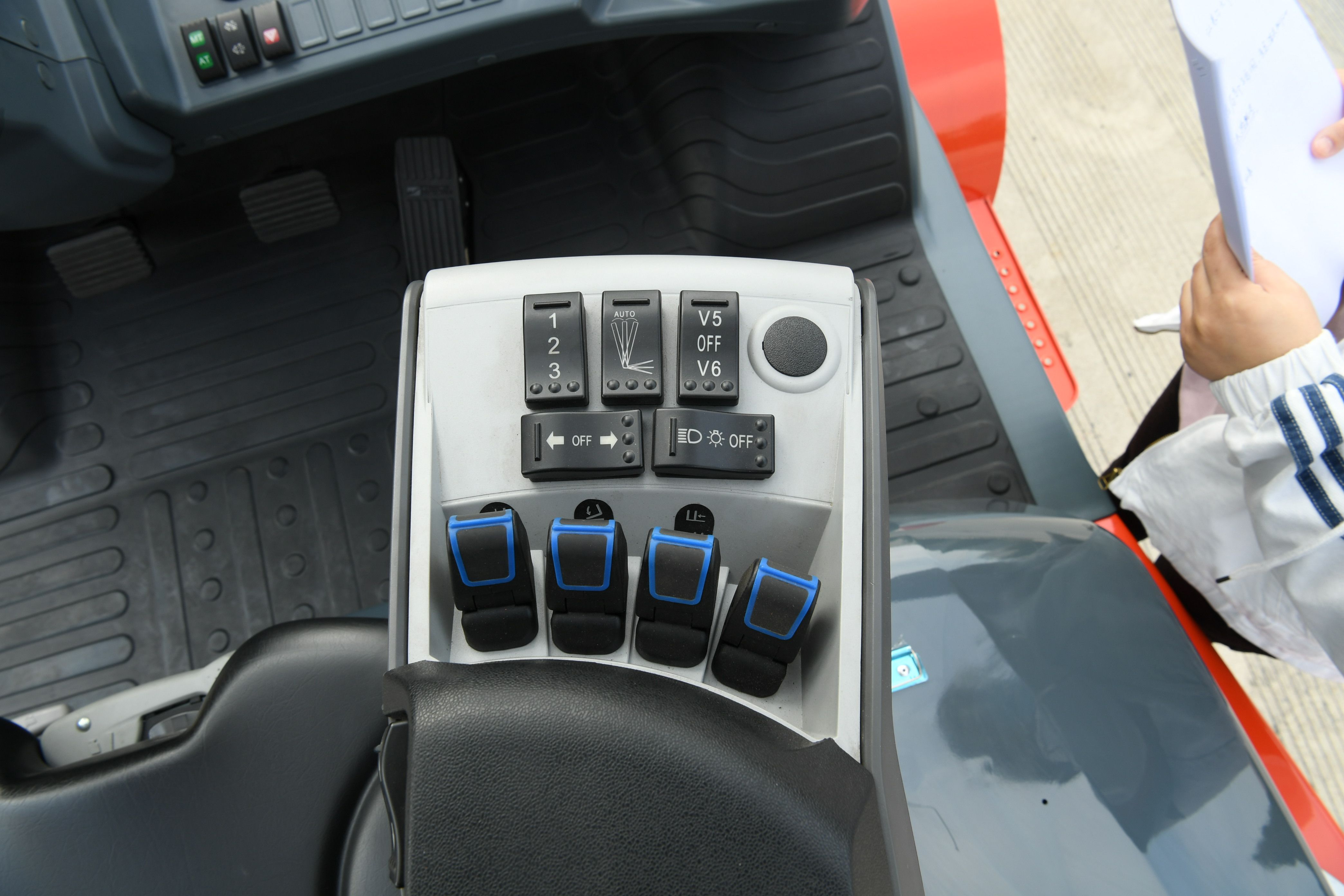

    Thedistance between double handle switch and steering wheel has been reduced. Control handle

    is disposed in the comfortable position. Comprehensive dashboard is easy to read, including coolant

    temperature, fuel gauge, preheat instruction. Optimized pedal system; The brake pedal is widened.

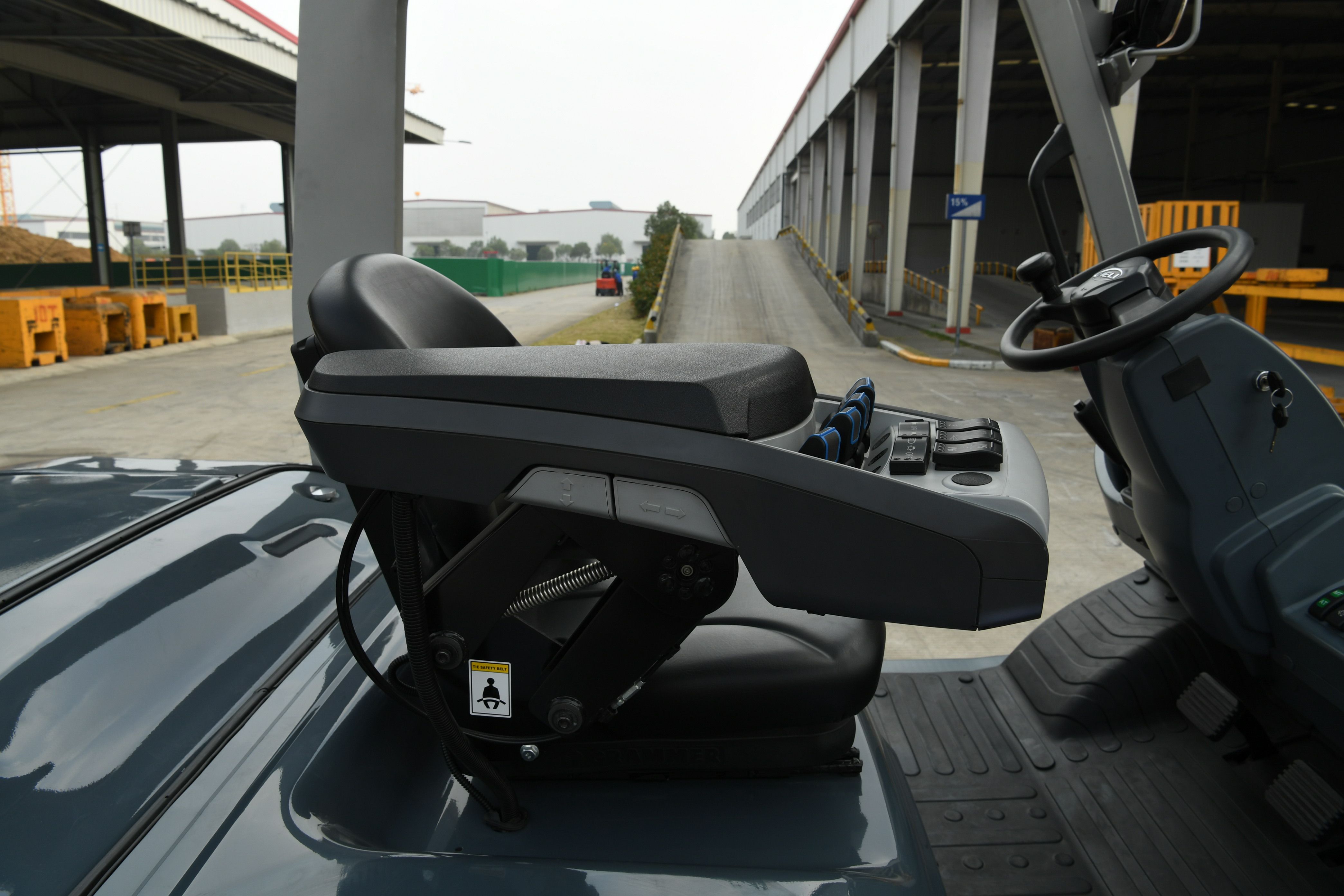

    Spacious legroom and footsteps space. Multifunctional suspended seat increase the support of the driver,

    and reduce vibration, and adjust driver's weight balance, and adjust front and rear tilt, and have eat tool

    bag and seat belt. Steering wheel adjusting mechanism is disposed appropriate position which is easy to

    adjust . It is reliable and secure. The range of steering wheel adjustment is 9 degrees forward and backward.

    The cover completely have been sealed between the cab and the engine cabinet, and it reduce driver's ear

    noise effectively.

    ● More safe and durable

    By using impedance composited muffler, this truck can make the sound power level reduce by 5%.Widened

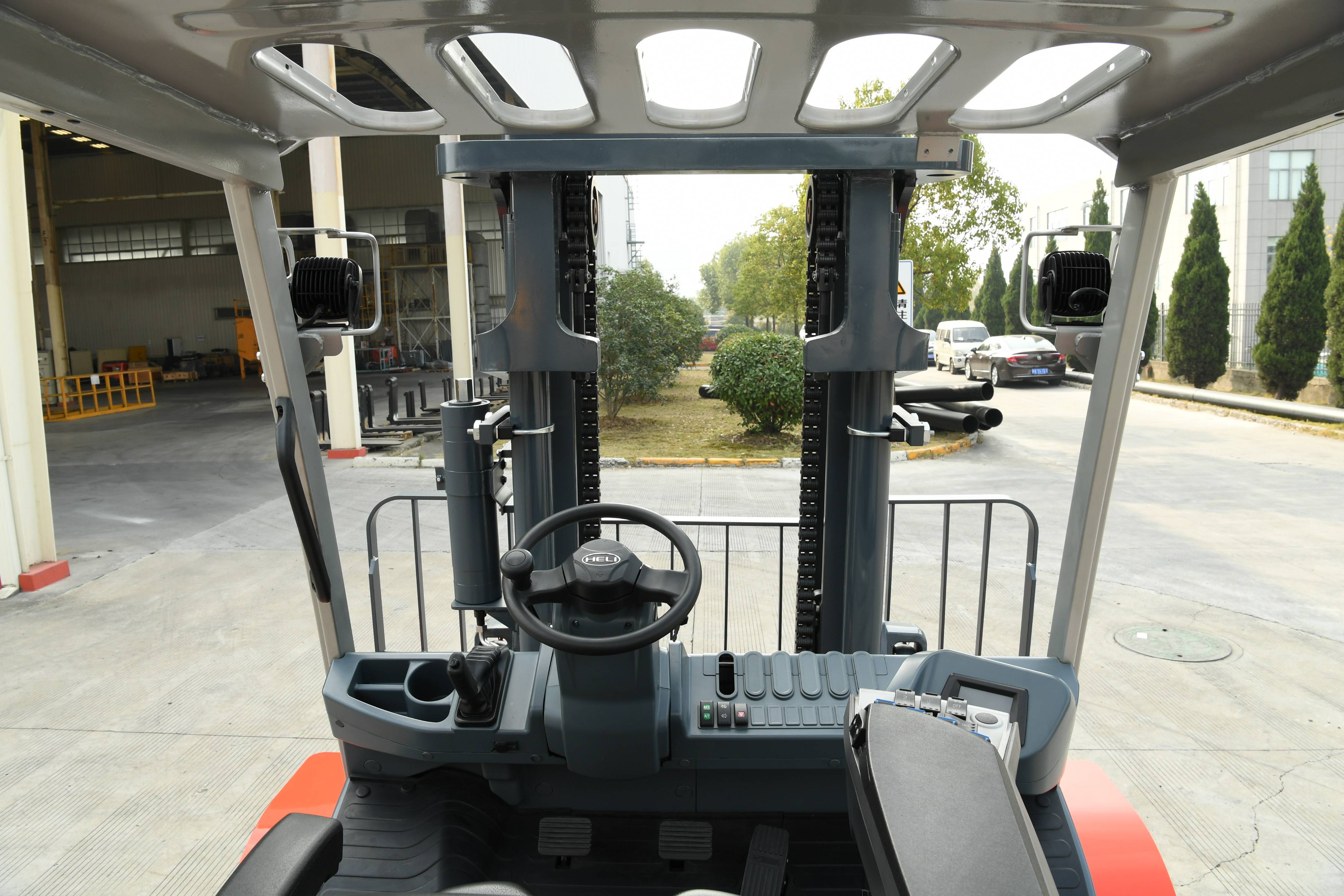

    view mast,smooth mast rail, enlarged inner width.

    The three-stage mast with front cylinder single chain arrangement reduce the interior space usage from chain,

    and reduce blind spots, and make the fork tip visible.

    When Lifting speed keeping constant, quantitative pump load sensing steering system can reduce gear pump’s

    displacement, and reduce torque of the driving pump, and finally reduce fuel consumption. Aluminum radiator

    with split fin structure can effectively reduce the failure rate, and it is easy to replace the radiator core, so can

    save maintenance costs. The fan, radiator and muffler’s layout have been optimized,  can increase the counter

    weight vent area, so that smoother airflow can cross the radiator. So this structure can reduce engine temperature

    20% and transmission oil temperature 30%.

    ● Easy maintenance and green

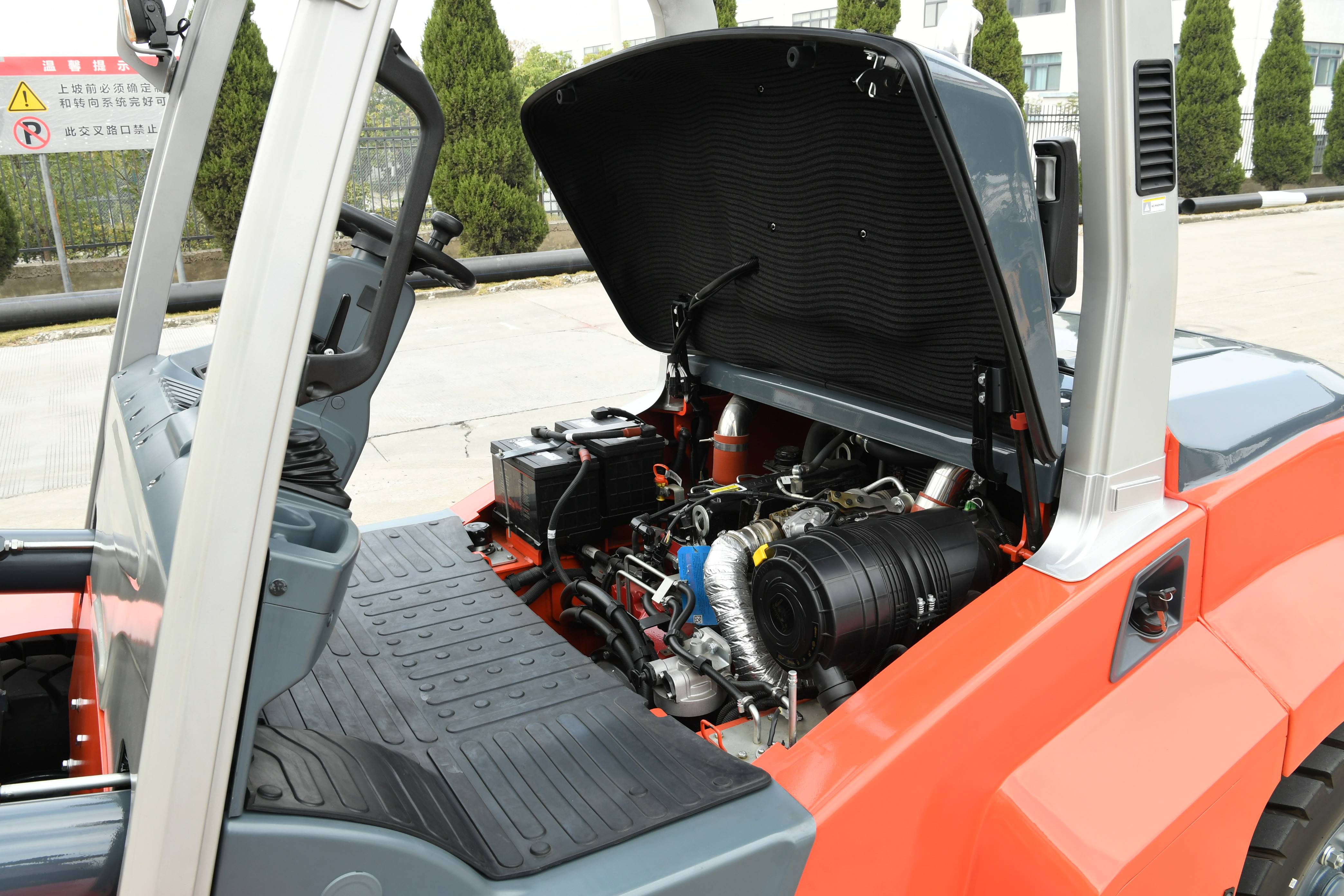

    Hood’s maximum opening angle is been up to 80 °, so the inspection and maintenance is very easy for

    spaciousness. We apply a separate integrated electrical box. The structure can make the main electrical

    components can protect against oil, water, dust and separated heat, greatly reduce the electrical failure

    rate, and can be easy to maintenance.

    ● Overall performance

    Electro-hydraulic reversing and intelligent shift system, Rotary direction switch. Fully enclosed dashboard.

    Hydraulic lines and electrical wiring is not been exposed.

The main parameter
Identification Series G Series
Model CPCD55 CPCD60 CPCD70 CPCD85 CPCD100
Rated capacity lb 11000 13000 15000 19000 22000
Load center in 24 24 24 24 24
Dimensions Overall height(overhead guard) in 96.5 96.5 96.5 100.8 100.8
Overall length(with fork/without fork) in 185.4/137.4 188.6/140.5 190.5/142.5 203.9/155.9 213.8/165.7
Overall width (single Tyre) in 80.5 80.5 80.5 85.2 85.2
Min.turning radius(exterior)(A single tyre is the same double tires) in 127.6 129.9 132.7 143.7 153.5
Weight Total weight lb 18282 19934 21255 25440 27885
Wheels,Chassis Tyre size(front/rear) in 8.25-15-14PR/8.25-15-14PR 8.25-15-14PR/8.25-15-14PR 8.25-15-14PR/8.25-15-14PR 9.00-20-14PR/9.00-20-14PR 9.00-20-14PR/9.00-20-14PR
Performance Max.traveling speed (Loaded/Unloaded) mph 17.4/19.6 17.1/19.5 16.9/19.4 17.0/19.5 16.3/19.3
Engine mode Cummins QSF3.8t4F
Engine rated power HP/rpm 119.3/2400
Engine rated torque (ft*Ib)/rpm 360.2/1600
Engine cylinder number-bore x stroke in 4
Piston displancement cu in 231.9
