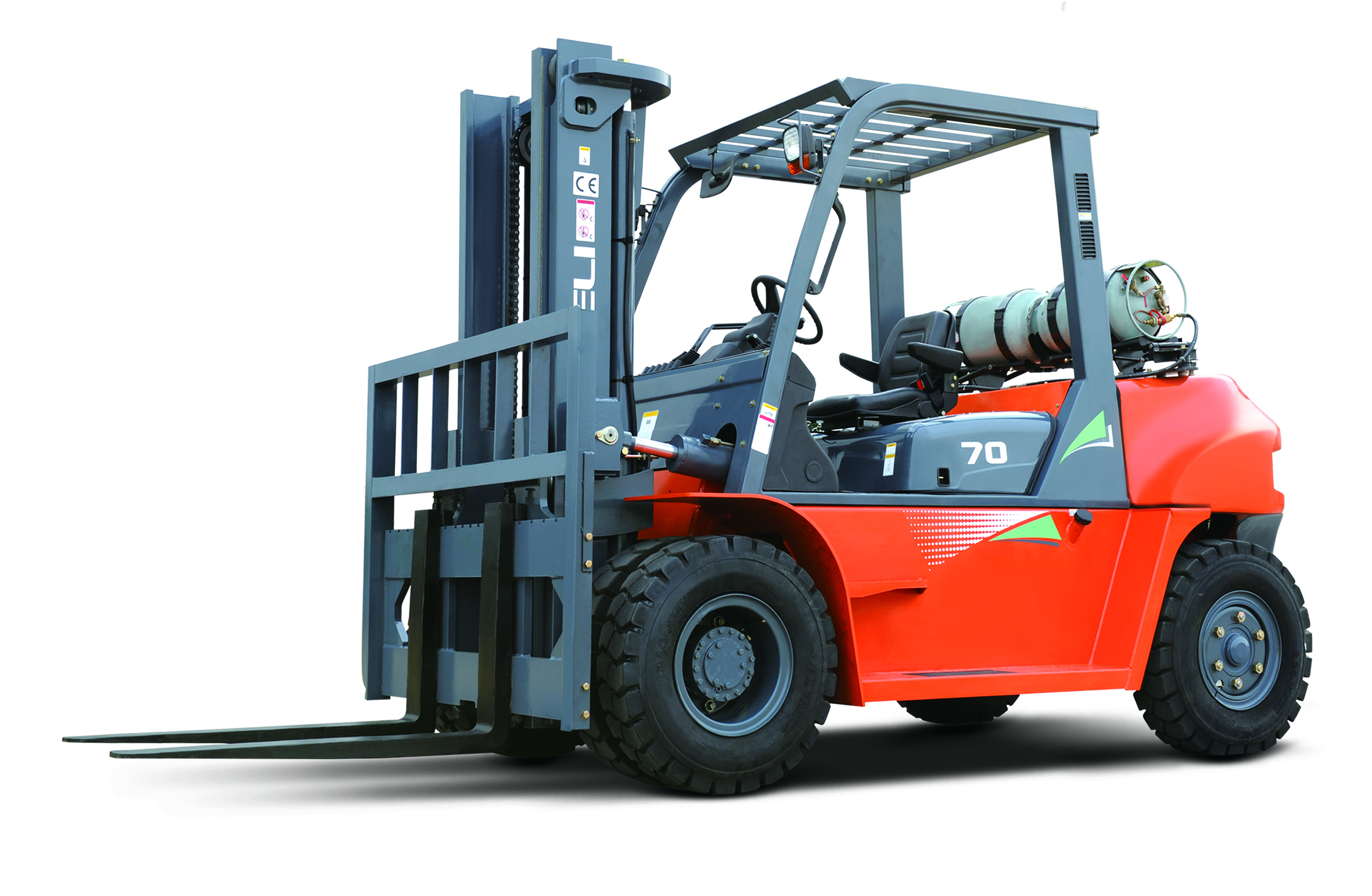

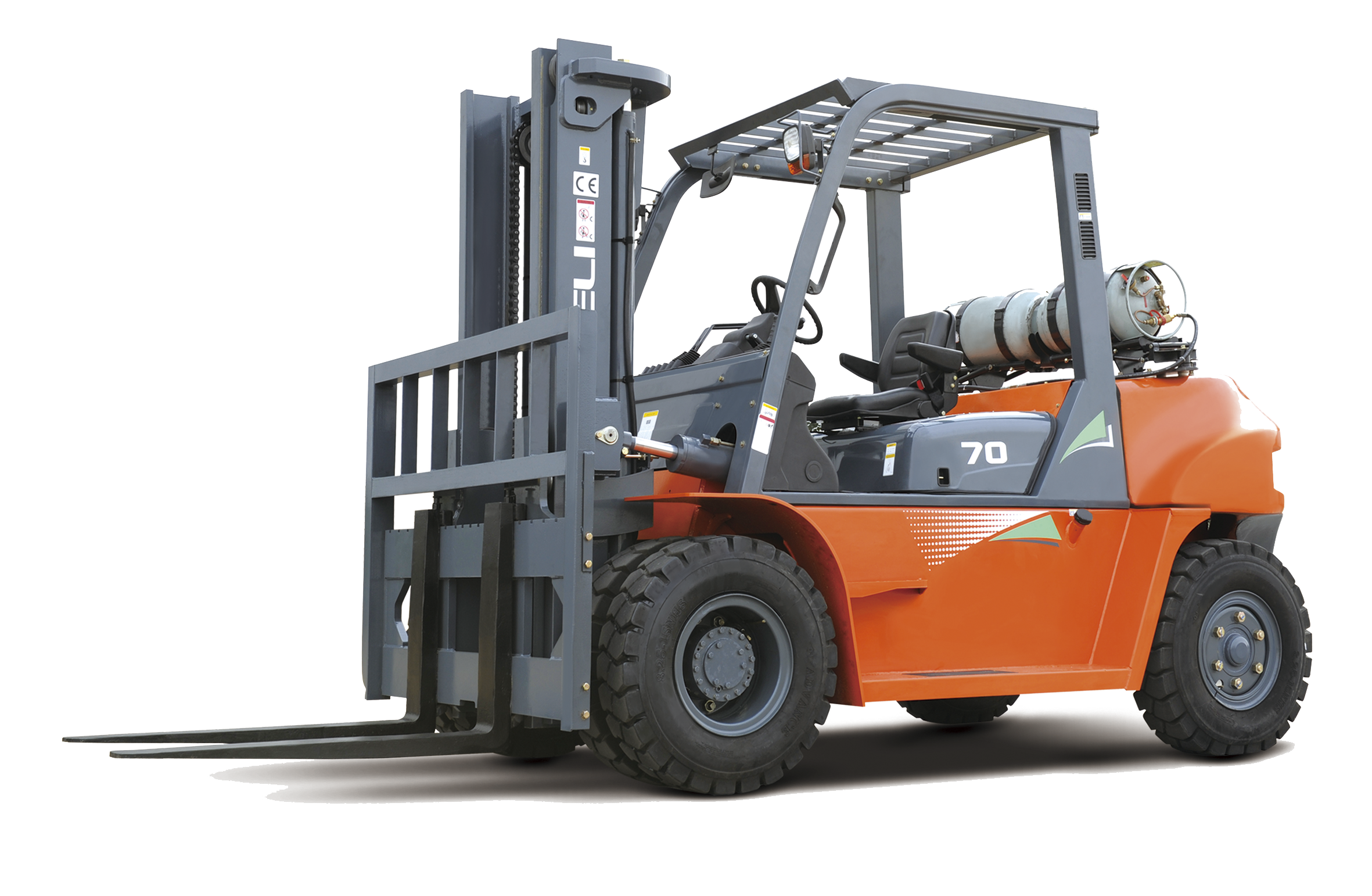

HELI perform a new design for it, and make this type trucks not only can provide exceptional comfort and
safety, but also more durable.
● More comfortable for driver(1)The suspended engine and transmission can effectively reduce the vibration which transmittedto the
operating system, andcan reduce the driving fatigue significantly. The suspended type cab, compared
with the H series, reduce30% vehicle vibration.
(2) Thecomfortable operationThedistance between double handle switch and steering wheel has been reduced. Control handle
is disposed in the comfortable position. Comprehensive dashboard is easy to read, including coolant
temperature, fuel gauge, preheat instruction. Optimized pedal system; The brake pedal is widened.
Spacious legroom and footsteps space. Multifunctional suspended seat increase the support of the driver,
and reduce vibration, and adjust driver's weight balance, and adjust front and rear tilt, and have eat tool
bag and seat belt. Steering wheel adjusting mechanism is disposed appropriate position which is easy to
adjust . It is reliable and secure. The range of steering wheel adjustment is 9 degrees forward and backward.
The cover completely have been sealed between the cab and the engine cabinet, and it reduce driver's ear
noise effectively.
● More safe and durableBy using impedance composited muffler, this truck can make the sound power level reduce by 5%.Widened
view mast,smooth mast rail, enlarged inner width.
The three-stage mast with front cylinder single chain arrangement reduce the interior space usage from chain,
and reduce blind spots, and make the fork tip visible.
When Lifting speed keeping constant, quantitative pump load sensing steering system can reduce gear pump’s
displacement, and reduce torque of the driving pump, and finally reduce fuel consumption. Aluminum radiator
with split fin structure can effectively reduce the failure rate, and it is easy to replace the radiator core, so can
save maintenance costs. The fan, radiator and muffler’s layout have been optimized, can increase the counter
weight vent area, so that smoother airflow can cross the radiator. So this structure can reduce engine temperature
20% and transmission oil temperature 30%.
● Easy maintenance and greenHood’s maximum opening angle is been up to 80 °, so the inspection and maintenance is very easy for
spaciousness. We apply a separate integrated electrical box. The structure can make the main electrical
components can protect against oil, water, dust and separated heat, greatly reduce the electrical failure
rate, and can be easy to maintenance.
● Overall performanceElectro-hydraulic reversing and intelligent shift system, Rotary direction switch. Fully enclosed dashboard.
Hydraulic lines and electrical wiring is not been exposed.
Identification | Series | G Series | |||
Model | CPYD55 | CPYD60 | CPYD70 | ||
Rated capacity | lb | 11000 | 13000 | 15000 | |
Load center | in | 24 | 24 | 24 | |
Dimensions | Overall height(overhead guard) | in | 96 | 96 | 96 |
Overall length(with fork/without fork) | in | 185/137 | 188/140 | 190/142 | |
Overall width (single Tyre) | in | 80.5 | 80.5 | 80.5 | |
Min.turning radius(exterior)(A single tyre is the same double tires) | in | 127 | 130 | 132 | |
Weight | Total weight | lb | 17592 | 19246 | 20569 |
Wheels,Chassis | Tyre size(front/rear) | in | 8.25-15-14PR/8.25-15-14PR | 8.25-15-14PR/8.25-15-14PR | 8.25-15-14PR/8.25-15-14PR |
Performance | Max.traveling speed (Loaded/Unloaded) | mph | 16.7/18.6 | 16.7/18.6 | 16.7/18.6 |
Engine mode | PSI 4.3 Certificate | ||||
Engine rated power | HP/rpm | GAS:102/2300 LPG:103/2300 | |||
Engine rated torque | (ft*Ib)/rpm | GAS:212.6/2300 LPG:76.3/2300 | |||
Engine cylinder number-bore x stroke | in | 6-101.6×88.39 | |||
piston displancement | cu in | 262.4 |
